TULIP - FROST PSL POST TOP AND TOP MOUNTING LED LANTERN

KEY CHARACTERISTICS

Material of construction : Housing - Aluminium
Di user SL - Di user cum PC lens
Di user frost - Optical grade frost PMMA

Optical compartment tightness level : IP65
Optical gear tightness level : IP65

Colour : Graphite grey
Any other RAL colour on request and confirmation
LED : High bright discreet
TULIP
LED CCT : 5700K ± 500K

LED CRI : ≥70

Optics : Type II
Driver : E ciency: ≥85%*
Surge protection: 4kV
Power factor: ≥90%, THD: ≤20%*
Operating input voltage range: 150-270V

External surge protection : 10kV (Recommended. To be procured separately)**
Power consumption : 25/36/50/72/90W***

Nominal voltage : 220-240V
Electrical class : I

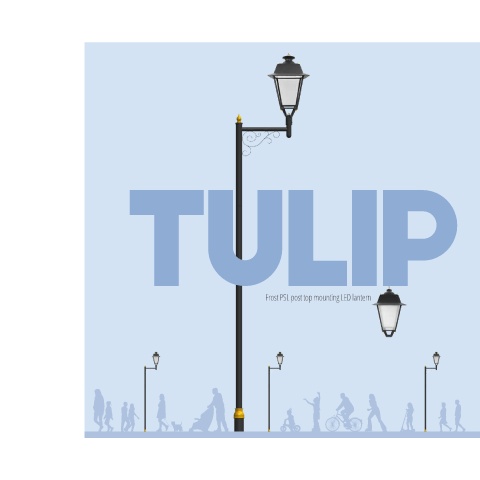

Frost PSL post top mounting LED lantern Ambient temperature range : -10℃ to +40℃

Average ambient temperature : +25℃

Mounting height (M) : 3/5/7/9

PRODUCT DIMENSIONS MOUNTING DRAWING
450
450
Luminaire is hanging inside
ID Ø41mm pipe
450 (TO BE PROCURED
SEPARATELY)
905 450
3 Holes at 120°
905 18 With M8 Tapping
450 ID Ø41
IDØ68
IDØ68
A
OD Ø60
765
450 Luminaire is mounted
on Ø60mm OD pipe
OD Ø39
(TO BE PROCURED
SEPARATELY)
450
A
PT TM PT TM
(All Dimensions in mm)
